Analyseur multi-gaz portable NDIR-GFC
MIR 9000P
Le MIR 9000P appartient à la nouvelle génération des analyseurs de gaz ENVEA, proposant ainsi une conception IoT, éco-responsable avec intelligence embarquée.
Il mesure 8 gaz en simultané – NOx, SO2, CO, CO2, CH4, N2O, O2 and residual H2O résiduel – et utilise la technologie infrarouge non dispersive avec corrélation de filtre gazeux (NDIR-GFC). L’ O2 est mesuré grâce à une sonde paramagnétique intégrée.
L’analyseur a été conçu pour répondre aux exigences spécifiques des mesures réglementaires des émissions sur site.
Il garantit ainsi à l’utilisateur mobilité supérieure, robustesse, précision et conformité aux normes. Ceci fait du MIR 9000P un analyseur de gaz unique en son genre, offrant une productivité accrue et un faible coût opérationnel.
Gagnez du temps tout au long de votre processus de mesure des émissions de cheminée
- INCREASED MOBILITY & PRODUCTIVITY

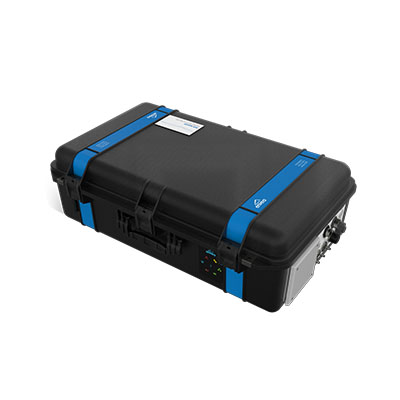

- Lightweight (15 kg/33 lbs), compact and extra resistant transport case
- Standby mode guarantees the instrument is operational at any time
- ROBUST DESIGN
- Extended operating temperature ranges
- High protection (IP 44) against water splashing from any direction
- STAY CONNECTED & GET ON WITH OTHER TASKS
- Remote access to full operation thanks to ENVEA Connect™ App and proprietary WiFi
- Smartphone alerts and notifications
- ONE CLICK OPERATIONS
- Integrated user guidance and shortcuts to key functions: calibrations, span check, zero, etc.
- Secured user management
- QUICK INSTALLATION
- Warm-up time: 30 min maximum

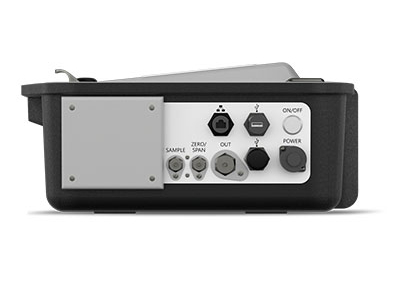

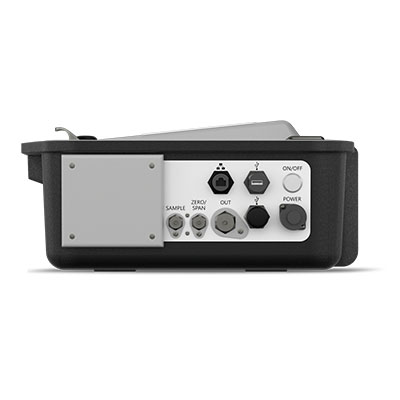

- Robust gas connectors
- Self-adaptive measuring scales
- Compatible with most sampling systems on the market
- PREPARE REPORT ELEMENTS WHILE ON SITE
- Direct access to real-time and stored data ; time frame selection to generate graphs
- All data can be saved on USB memory stick
- MAXIMIZED UPTIME OF THE ANALYZER

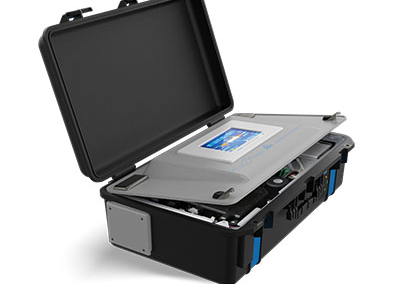

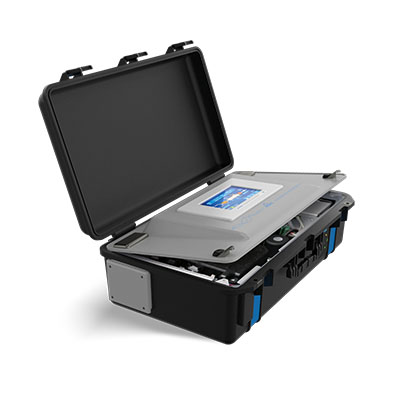

- Turn-up lid designed for quick access to operational modules and easy maintenance
- Modular design and Plug & Play parts (O2 probe, NOx converter, protection filter, etc.)
- 8 simultaneous parameters : NOx, SO2, CO, CO2,CH4 and N2O, O2 and residual H2O – All-in-one case design for easy transport/storage
- Lightweight (15 kg, 33 lbs), compact and extra resistant transport case
- Standby mode guarantees the instrument is operational at any time

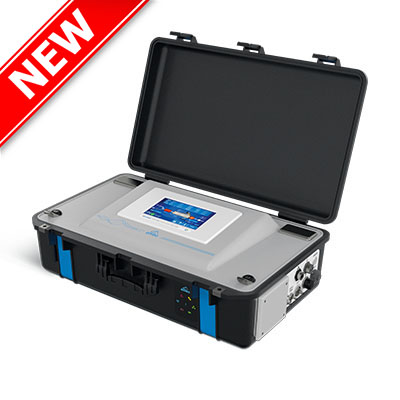

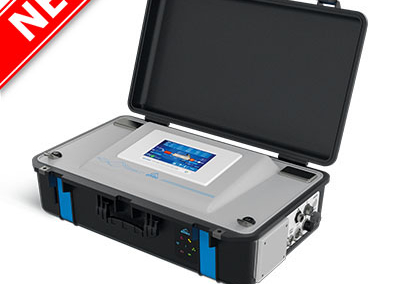

- Analyzer designed to operate case closed or open.
- Remote access to full operation thanks to ENVEA Connect™ App and proprietary WiFi, smartphone alerts & notifications, IoT ready
- Warm-up time : 30 min maximum. Compatible with most sampling systems on the market, fast gas connectors, self adapting gas scales
- Secured multi-user management, shortcuts to key functions (zero, span check, calibration…)
- Front side indicator provides key status info to the user
- Redundant and secured data back-up
- Easy and reduced maintenance : modular design and Plug & Play parts, turn-up lid designed for quick access to operational elements

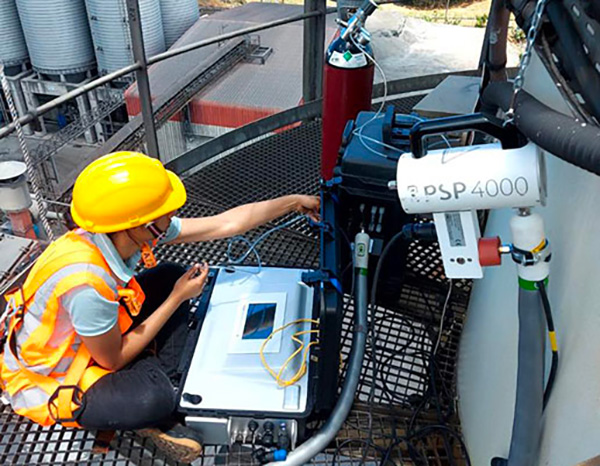

- Regulatory and periodic stack emission monitoring for industrial combustion sites, boilers, etc.
| Measuring Ranges | |
|---|---|
| NOx as NO (after NOx converter) |
0/70*/2000*/3300 mg/Nm3 0-50/1500/2500 ppm |
| NOx as NO2 (after NOx converter) |
0/107*/3100*/5000 mg/Nm3 0/50*/1500*/2500 ppm |
| SO2 | 0/143*/2000*/8600 mg/Nm3 0/50*/700*/3000 ppm |
| CO | 0/70*/3000*/8000 mg/Nm3 0/60*/2500*/6500 ppm |
| CO2 | 0-20/30% vol. |
| N2O | 0/50/150*/450*/980 mg/Nm3 0/25/75*/225*/500 ppm |
| CH4 | 0/70/140/400/5000 ppm 0/50/100/300/3600 mg/Nm3 |
| O2 | 0-10/25% vol. measured by a built-in paramagnetic sensor |
| Residual H2O | 0-2% vol. |
*certified range
| Technical Specifications | |
|---|---|
| QAL1 to EN 15267-4 certified | YES |
| US EPA compliance | YES |
| Sampling technology | Cold/Dry Extraction (gas cooler) |
| Sample transfert | non heated polytube / heated sampling line |
| back flush function | N/A |
| span injection | YES |
| Built-In O2 sensor | YES |
| Built-In NOx oven | YES |
| Serial link communication | 3 x USB ports type A: 2.0 (compatible 3.0) 1 x RJ45 (MODBUS TCP, MODBUS RTU (dongle) UDP Protocol) |
| Other Communication | WiFi (via USB) |
| INPUTS/OUTPUTS module | 8 non-isolated analog outputs (0-1 V, 0-10 V, 0-20 mA, or 4-20 mA), with common ground and user programmable scales 8 non-isolated analog inputs 0-2.5 V 8 isolated digital inputs 12 digital outputs by potential free relay |
| Optional cable for analog INPUTS | Dynamic 250 mV or 10V (only one input can be used at once) |
| Dimensions (mm) | 641 x 209 x 393mm (WxDxH) |
- QAL1 certification by the TÜV according to EN 15267-1, EN 15267-2 and EN 15267-4. Download the TÜV certificate: 0000074636
- Compliant with EN 15267-4
Air quality – Certification of automated measuring systems – Part 4: Performance criteria and test procedures for automated measuring systems for periodic measurements of emissions from stationary sources - Compliant with US EPA
